Efficient Zoning

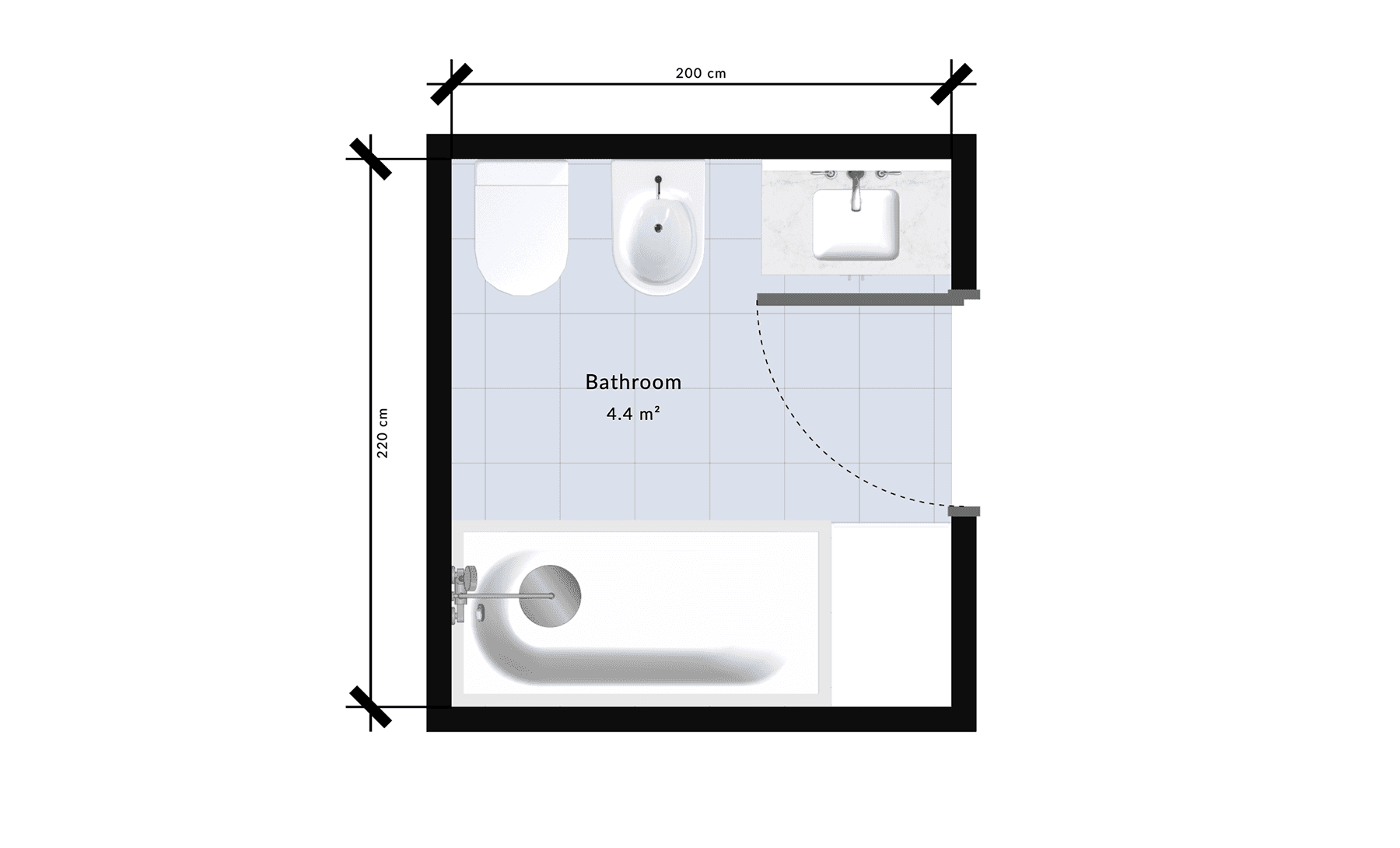

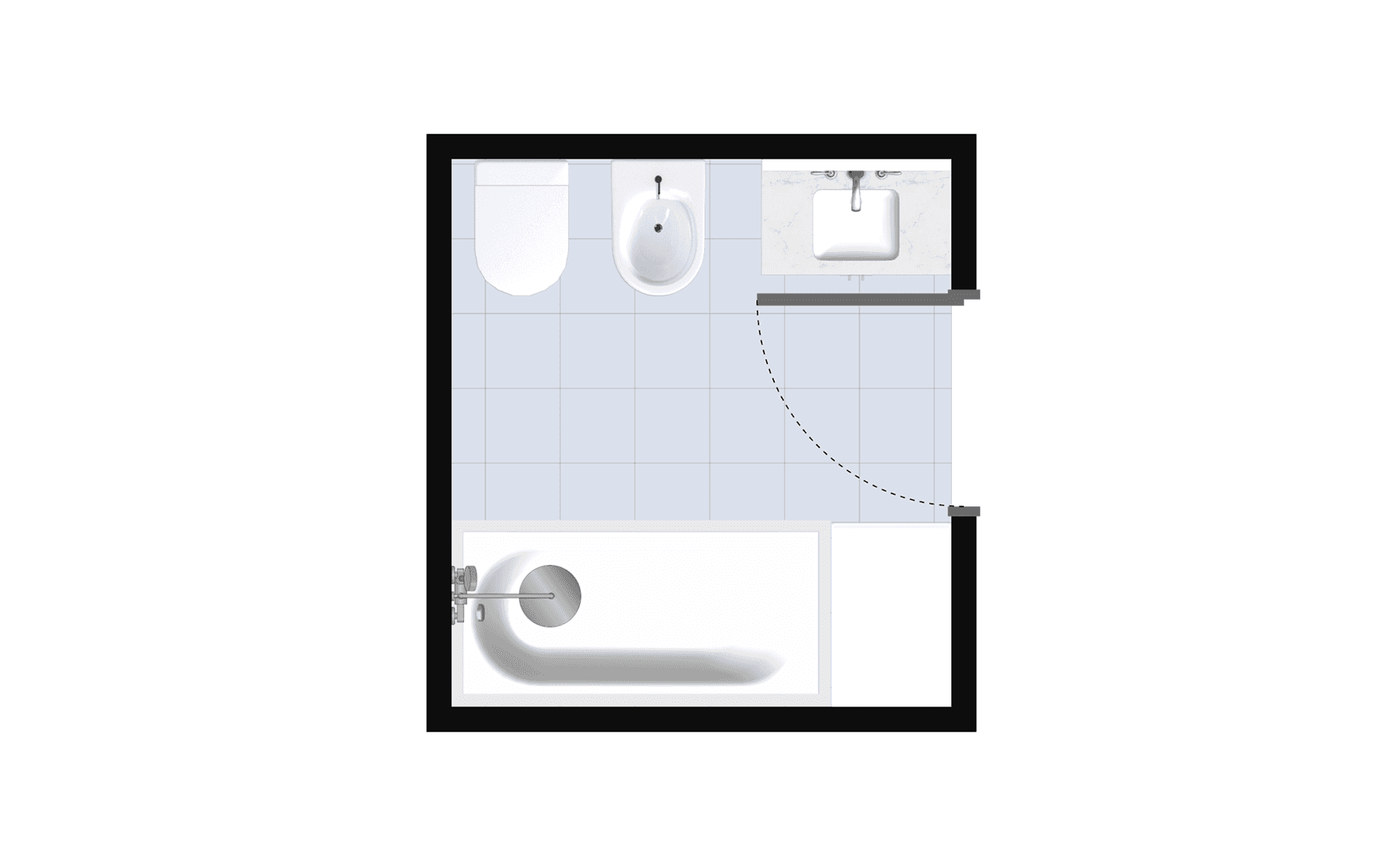

This bathroom layout floor plan features a clean and symmetrical 2-wall facing configuration across 4.4 m² (≈ 47 sq ft). By placing the bathtub on one wall and the toilet, bidet, and vanity on the opposite wall, the space feels open, easy to navigate, and visually balanced.
Room-by-Room Breakdown
Dive into each bathroom area to see how smart planning transforms function and accessibility.
Bathtub: Installed along the lower wall, the tub defines the bathing zone and serves as the focal point upon entry.
Toilet and Bidet: Positioned side by side for convenience, they face the bathtub and preserve a clean, linear design.
Sink: The vanity is set in the corner, opposite the door, which optimizes flow and storage without compromising circulation.
Storage: Add recessed shelves or vertical cabinetry above the bidet and toilet for optimized space usage.
Minimum Dimensions & Practical Guidelines
The facing 2-wall bidet full bathroom layout requires a minimum width of 2.13–2.59 m (7′–8′6″) and a matching depth of 2.13–2.59 m (7′–8′6″), for a total floor area between 4.5 and 6.7 m² (49–72 sq ft). With fixtures placed along two opposite walls, this configuration creates a spacious central aisle ideal for circulation and visual openness.
For any remodeling of bathroom or renovation of a bathroom, ensure an activity clearance of 61 cm (24″) around each fixture and a circulation path of at least 76 cm (30″). If accessibility is needed, reserve a turning radius of 1.52 m (60″) to comfortably accommodate wheelchair users or mobility aids.
This layout’s symmetry offers not only aesthetic appeal but also functional balance, particularly suited for bathrooms where square footage is available but efficient organization remains a priority.
Architect's Design Recommendations
Looking to upgrade your layout? These insights are perfect for any renovation of a bathroom.
Zoning clarity: This layout provides clear separation between wet and dry functions—ideal for keeping things organized and accessible.
Visual balance: Matching widths for fixtures and aligning elements across opposing walls enhances symmetry.
Lighting: Combine task lighting at the mirror with overhead ambient lighting for comfort and clarity.
Finishes: Use light tile for walls and mid-tone flooring to visually anchor the room without shrinking it.
Design a Bathroom Free and Easy
This layout is ideal for compact bathrooms that require maximum functionality—including a bidet—without clutter. Start building your bathroom floor plan design with Space Designer 3D. Our virtual bathroom designer free lets you design a bathroom online free using intuitive tools. Get started now with our free bathroom design software and bring your ideas to life in 2D and 3D.
