Functional Symmetry

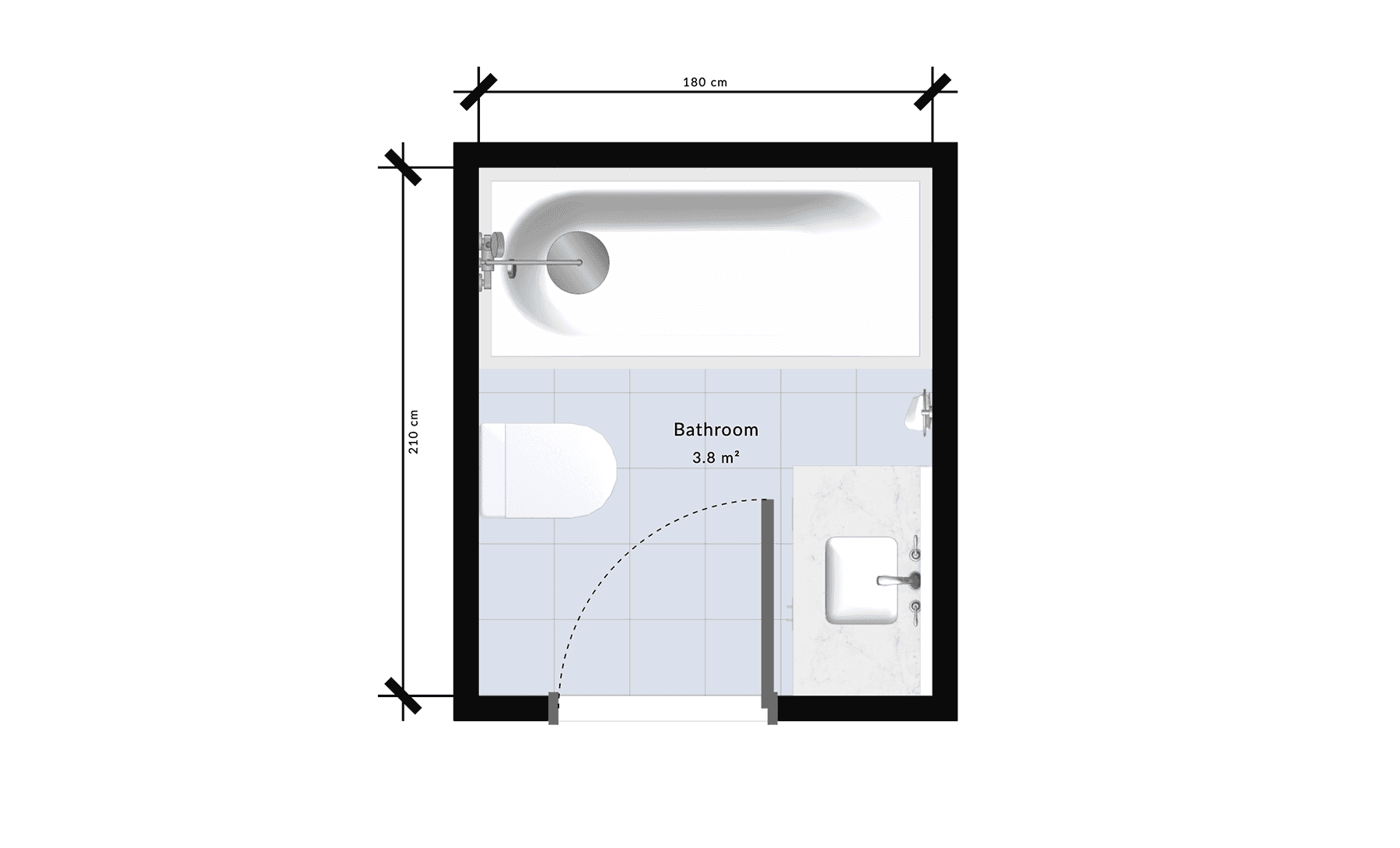

This bathroom floor plan features a 2-wall center layout across 3.8 m² (41 sq ft), using opposite walls to create a symmetrical and efficient distribution of sanitary fixtures. Ideal for square bathrooms, this arrangement makes the space feel open and balanced while separating wet and dry zones.
Room-by-Room Breakdown
Get a closer look at the specific bathroom zones and how they contribute to a practical and elegant layout.
Bathtub: Aligned along the back wall, the full-length tub anchors the wet zone. It offers plenty of comfort without overwhelming the floor space.
Toilet: Positioned on the side wall adjacent to the tub, the toilet benefits from direct access while preserving privacy from the door.
Sink: Installed across from the toilet, the vanity is centered and welcomes natural circulation. It includes under-counter storage and countertop space for daily essentials.
Storage: A niche above the toilet or slim cabinetry near the vanity can help keep toiletries organized without adding bulk.
Minimum Dimensions & Accessibility Tips
For a 2-wall center-entry full bathroom layout, typical minimum dimensions range from 1.91 to 2.21 m wide (6′3″–7′3″) and 1.52 to 1.83 m deep (5′–6′), covering a floor area between 2.9 and 4 m² (31–44 sq ft). This U-shaped configuration maximizes spatial efficiency by grouping the fixtures around two adjoining walls, creating an open and balanced circulation flow.
During the renovation of a bathroom, plan for at least 61 cm (24″) of clearance around each fixture to ensure comfort. For high-traffic or shared settings, allow for a 76 cm (30″) circulation zone between elements. When focusing on remodeling of bathroom spaces for accessibility, include a turning radius of 1.52 m (60″) to accommodate wheelchair users safely and efficiently.
This layout is a smart option when redesigning for enhanced comfort in medium-sized bathrooms or converting tight areas into fully functional spaces.
Design Tips from an Architect’s Perspective
Explore professional strategies to improve your layout during a renovation of a bathroom.
Spatial flow: This layout allows natural movement from dry to wet zones, improving usability and cleanliness.
Finishes: Light-colored stone, marble, or ceramic wall coverings combined with pale grout lines expand visual space.
Lighting: Use soft vertical sconces flanking the mirror for task lighting and a recessed ceiling light to illuminate the entire room.
Ventilation: A central layout requires effective air circulation—consider a quiet ceiling exhaust fan to maintain comfort and hygiene.
Try Our Virtual Bathroom Designer Free
Whether you're working on a small bathroom floor plan or remodeling a master bath, this 2-wall center layout delivers both function and symmetry. Start designing your dream layout now with Space Designer 3D, a powerful free bathroom design software. You can design a bathroom online free, view it in 3D, and fine-tune your bathroom floor plan design instantly with our intuitive virtual bathroom designer free tool.
