Comfort and Efficiency

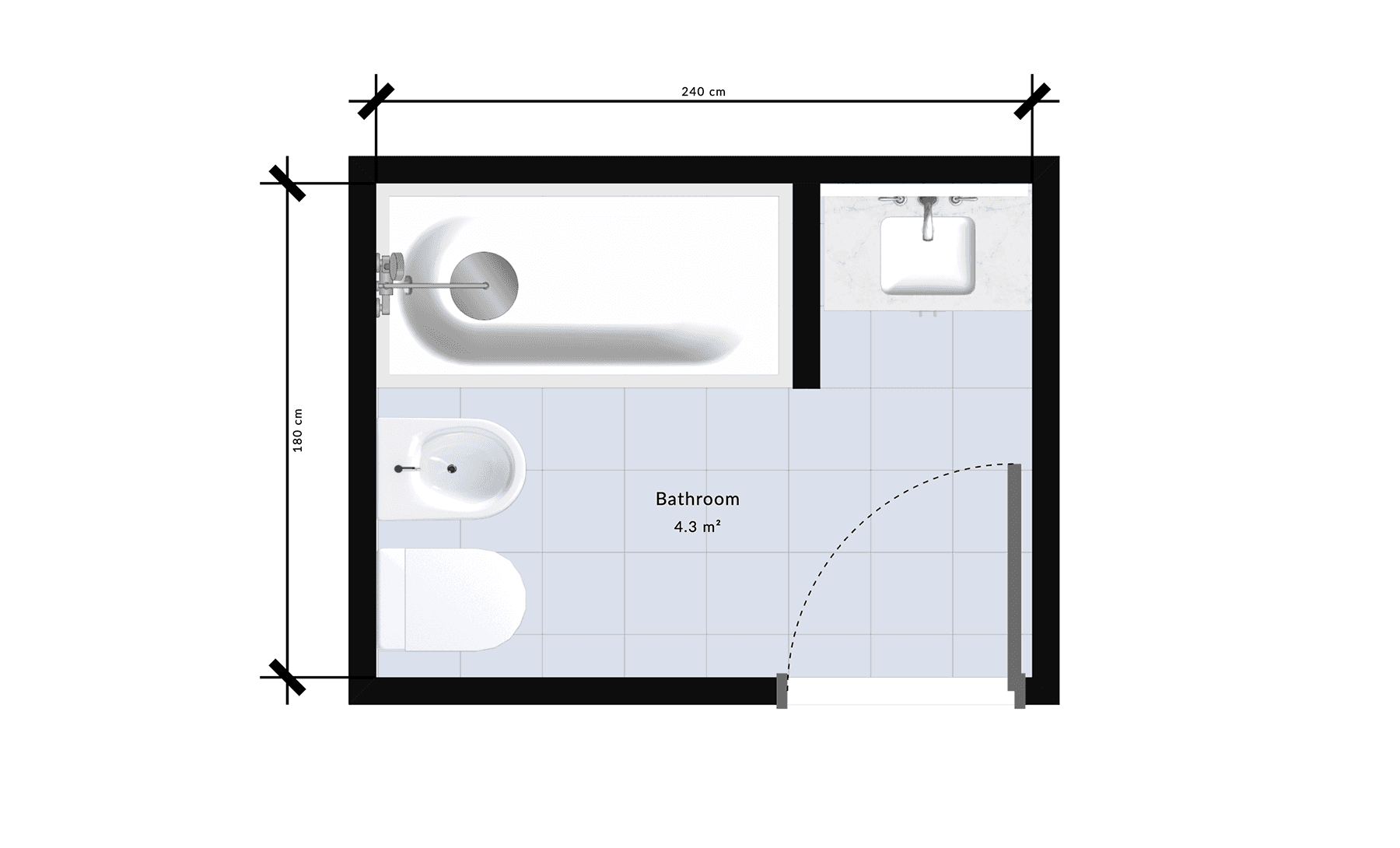

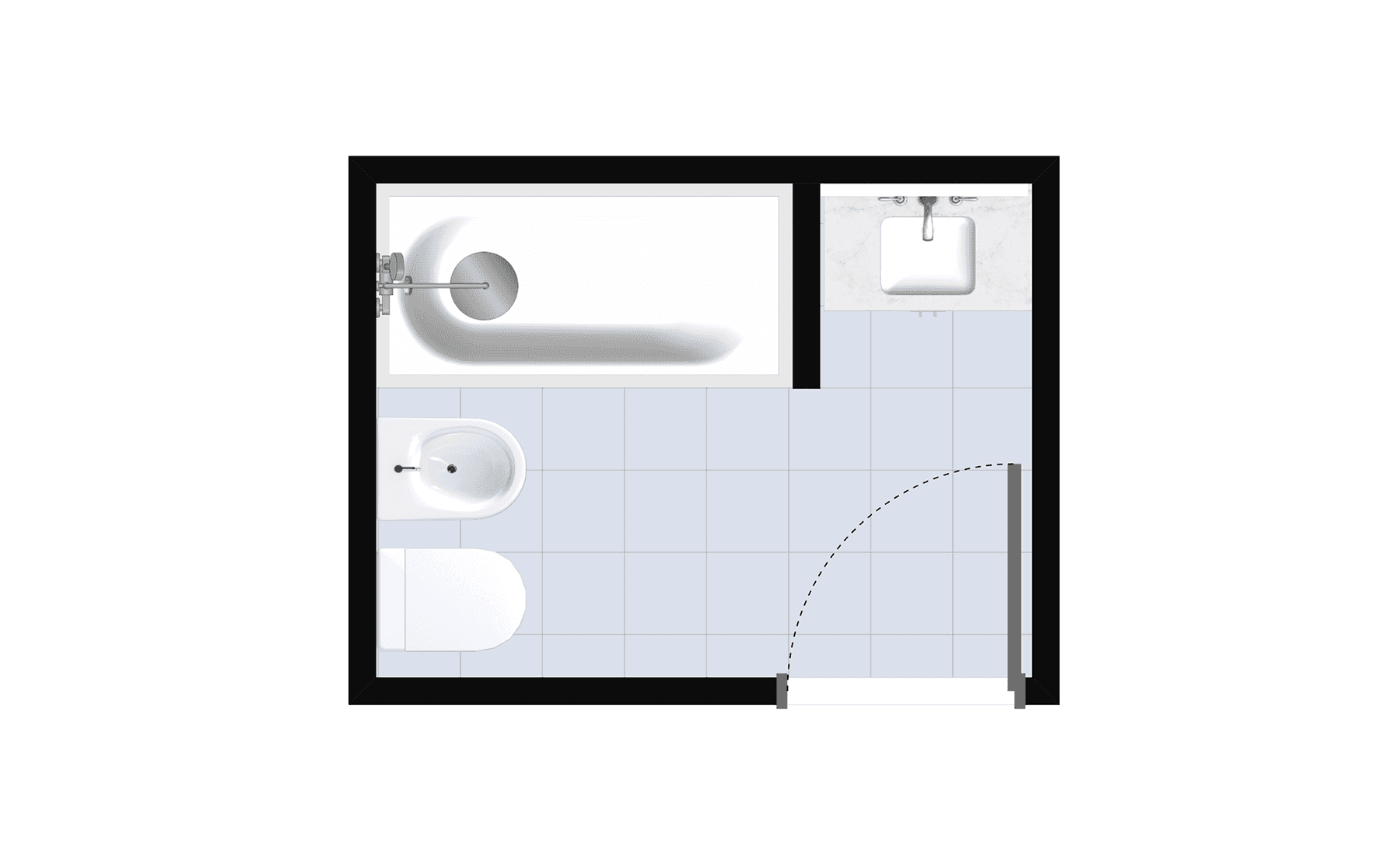

This bathroom design floor plan balances function and comfort within a compact 4.3 m² (46 sq ft). With a 2-wall layout, it separates the bathtub from the vanity and sanitary fixtures, creating clear zones for washing, hygiene, and storage. A bidet is included for those seeking full functionality in a European-style configuration.
Room-by-Room Breakdown
Learn how each fixture fits into the overall plan and supports efficient bathroom use.
Bathtub: Installed along the upper wall, the tub is easily accessible and defines the wet zone.
Toilet and Bidet: Located side by side in the corner, they benefit from a shared plumbing wall and maintain privacy from the door.
Sink: Positioned on the adjacent wall, the vanity opens up the space and improves circulation. A mirror cabinet or recessed niche enhances storage options.
Minimum Dimensions & Accessibility Tips
The 1-wall bidet full bathroom layout fits within a width of 2.77 to 3.43 m (9′1″–11′3″) and a depth of 1.52 to 1.83 m (5′–6′), covering a total surface area of 4.2 to 6.3 m² (45–68 sq ft). With all four fixtures (bathtub, toilet, bidet, sink) aligned along the same wall, it offers a streamlined solution ideal for long, narrow spaces.
If you're planning a remodeling of bathroom or a renovation of a bathroom, allow for at least 61 cm (24″) of clearance around each element for safe use, and a 76 cm (30″) path for smooth movement. For full accessibility, a turning radius of 1.52 m (60″) is recommended to support maneuverability for wheelchair users.
This layout is particularly efficient for maximizing utility along a single axis, simplifying both planning and plumbing while delivering full bathroom functionality.
Architectural Tips for Effective 2-Wall Layouts
From fixture placement to circulation flow, these tips help you design like a pro.
Circulation clarity: Splitting the fixtures across two walls improves ergonomics and airflow, especially near the entrance.
Material choices: Choose soft, neutral tones and waterproof finishes to create a serene, cohesive space.
Lighting design: Use task lighting above the vanity, paired with ceiling-mounted general lighting to define zones.
Ventilation: Ideal placement of the fan above the tub or near the toilet area will keep humidity under control.
Create Your Bathroom Plan Online For Free
This layout is ideal for anyone looking to incorporate a bidet in a small bathroom without sacrificing comfort. With Space Designer 3D, you can test different configurations using our virtual bathroom designer free. Whether you're renovating or building from scratch, explore endless possibilities with our free bathroom design software. Design a bathroom online free and visualize your perfect bathroom floor plan design today!
