Compact Full Bathroom Design with Privacy in Mind
This full bathroom spans 4.0 m² (43 sq ft), separated into two functional zones for improved comfort and circulation. With a smart two-wall layout, it offers a practical yet stylish solution for small bathroom layout plans.
Room-by-Room Description
From grooming to bathing, see how each part of the layout serves a specific user need.

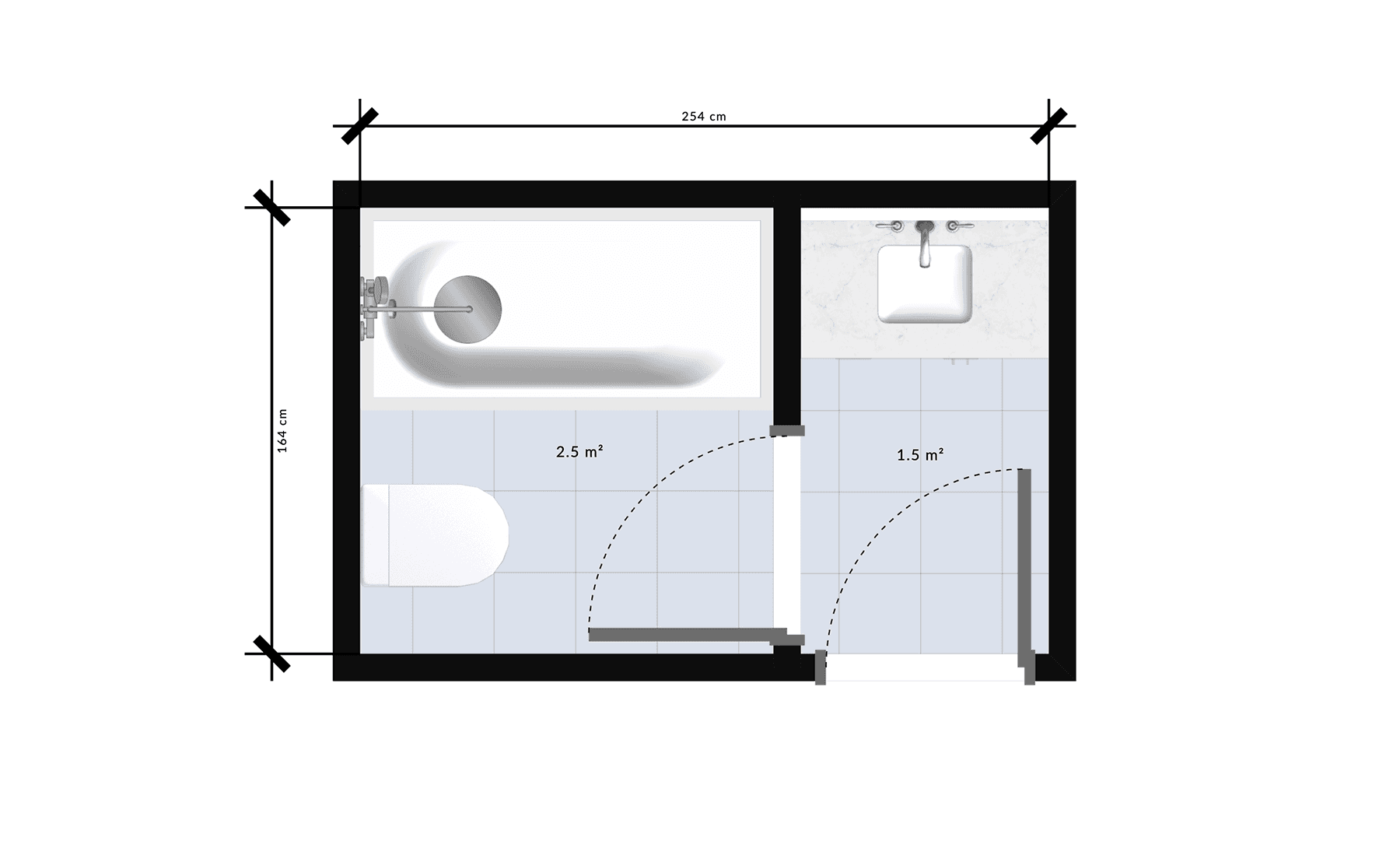

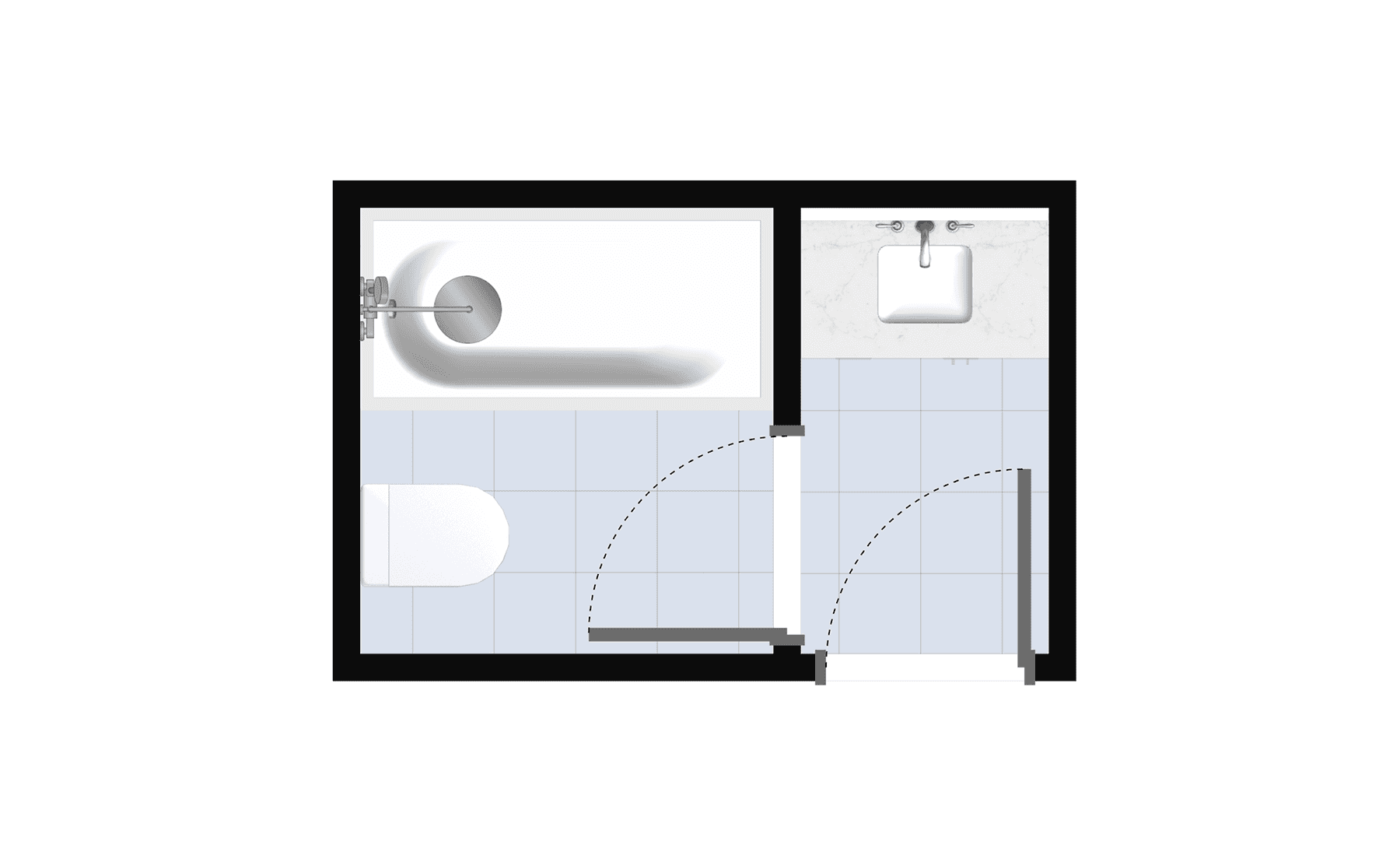

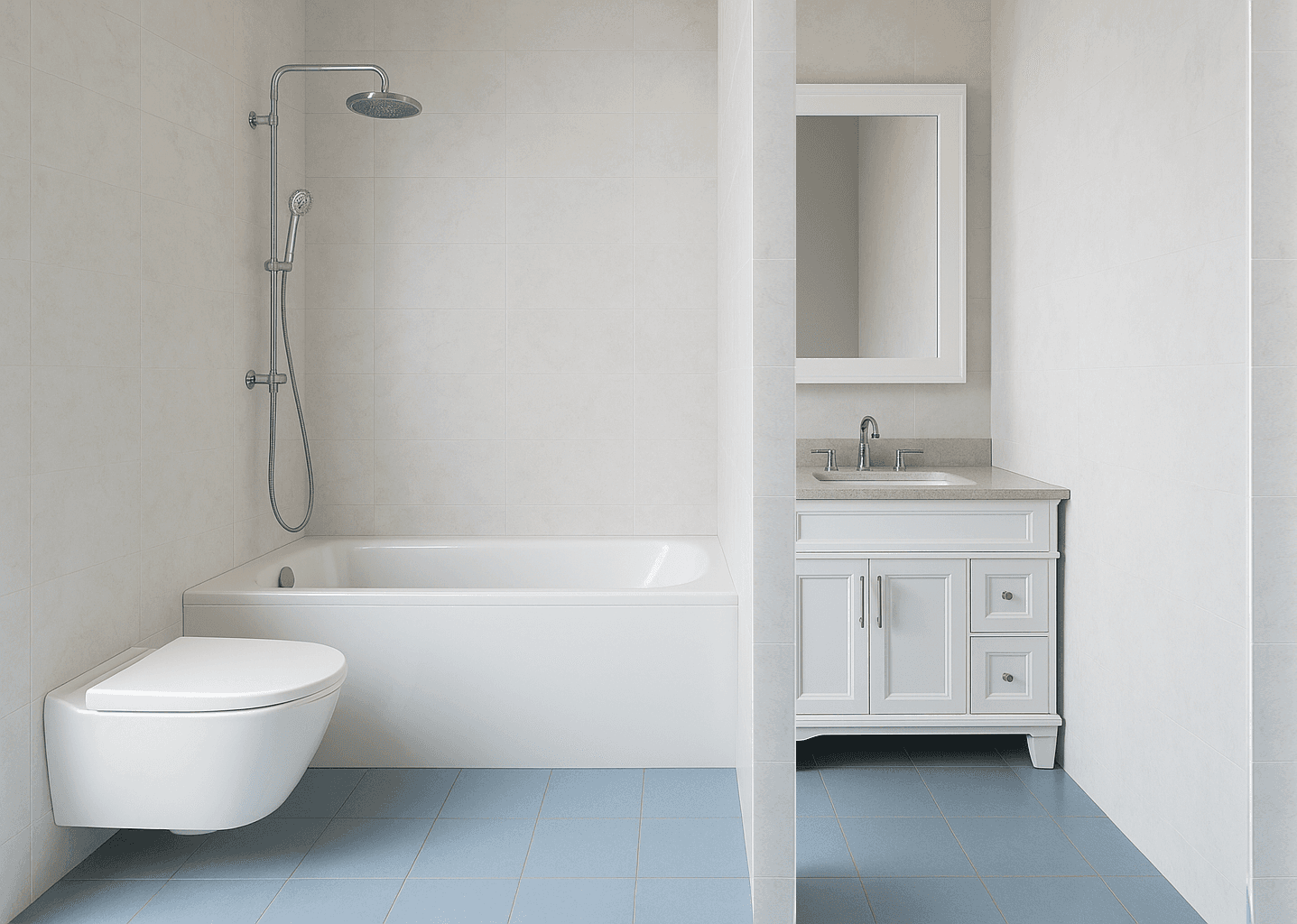

Toilet and Bathtub Area (2.5 m² / 27 sq ft): Located on one side of the room, this section combines a sleek wall-mounted toilet with a traditional rectangular bathtub. The bathtub is placed along the longer wall, leaving clear floor space for movement.
Vanity and Sink Area (1.5 m² / 16 sq ft): Separated by a partial wall and doorway, the vanity zone features a marble-top cabinet sink with a mirror and storage below. This section is ideal for grooming without interrupting someone using the toilet or bath.
Minimum Dimensions & Practical Guidelines
The split 2-wall full bathroom layout requires a minimum width of 2.71–2.86 m (8′11″–9′5″) and a depth between 1.68–1.83 m (5′6″–6′). The total floor area usually ranges from 4.5 to 5.2 m² (49–56 sq ft). By organizing the wet zone (bathtub and toilet) and the dry zone (vanity and storage) along adjacent walls in separate areas, this design enhances privacy and comfort—ideal for shared or family bathrooms.
When planning a renovation of a bathroom or a remodeling of bathroom for multi-user environments, it's essential to allocate 61 cm (24″) of clearance around each fixture and provide at least 76 cm (30″) for movement between elements. For accessible design, allow a 1.52 m (60″) turning diameter to accommodate wheelchair use.
This configuration offers a refined solution for everyday functionality, especially in modern homes where optimizing shared spaces without compromising on comfort is a priority.
Architectural Tips for Better Layout
Apply these simple yet effective tips to make your full bathroom both beautiful and efficient.
Use split bathrooms to enhance privacy in shared living environments like family homes or guest quarters.
Opt for frosted glass or pocket doors between sections to conserve space and maximize light.
Consider non-slip porcelain tiles in both zones, ensuring safety and easy maintenance.
Integrated LED lighting under the vanity mirror can add elegance without taking up space.
