A Smart Layout that Separates Function from Comfort

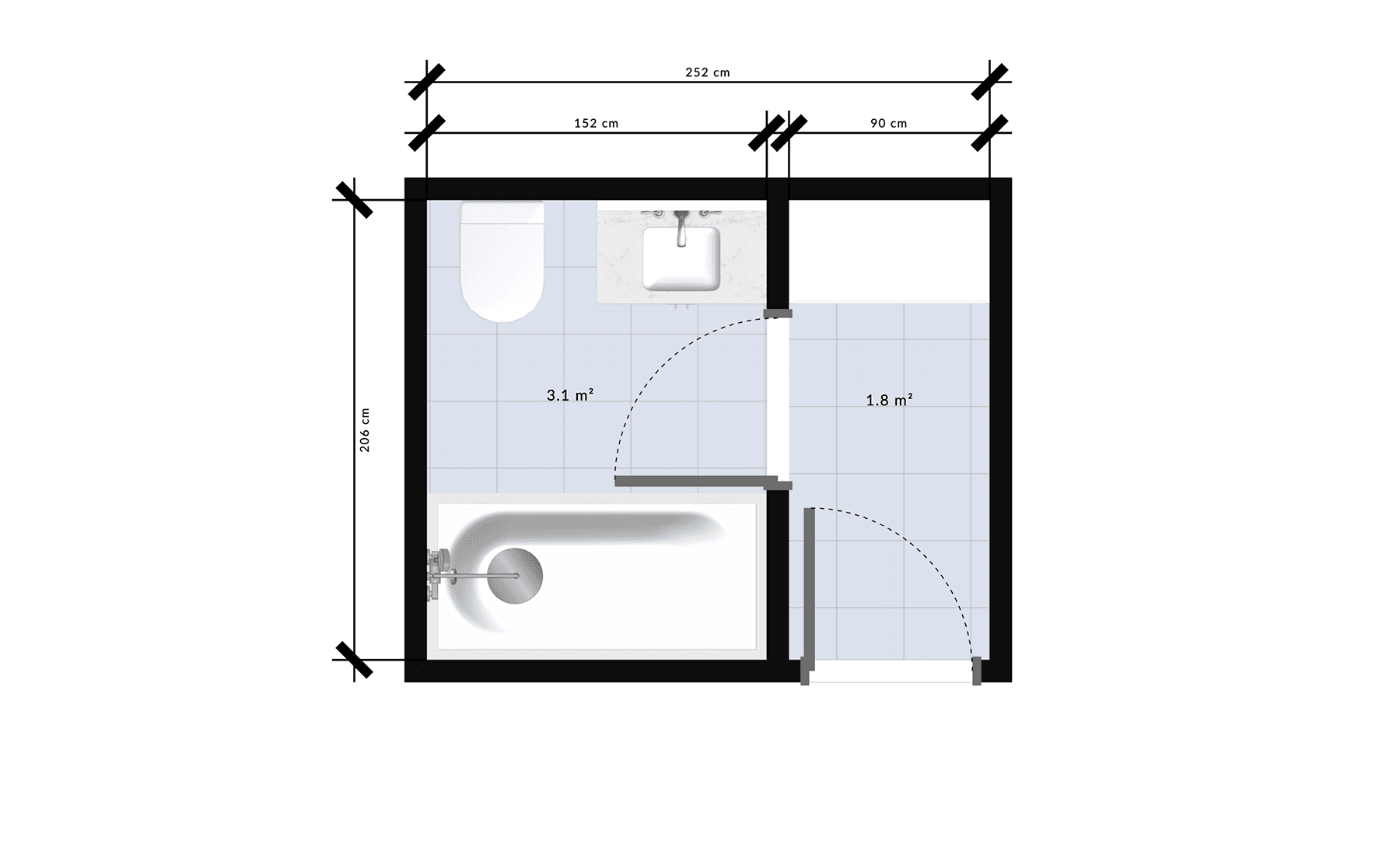

This full bathroom floor plan offers a clever 2-wall split layout with a defined entry area, making it ideal for master suites or family homes where organization and visual balance matter. The layout measures 252 x 206 cm (99.2" x 81.1") and provides a smooth circulation path from the entry to the bathing area.
Room-by-Room Breakdown
Gain insight into bathroom functionality by exploring each dedicated area.

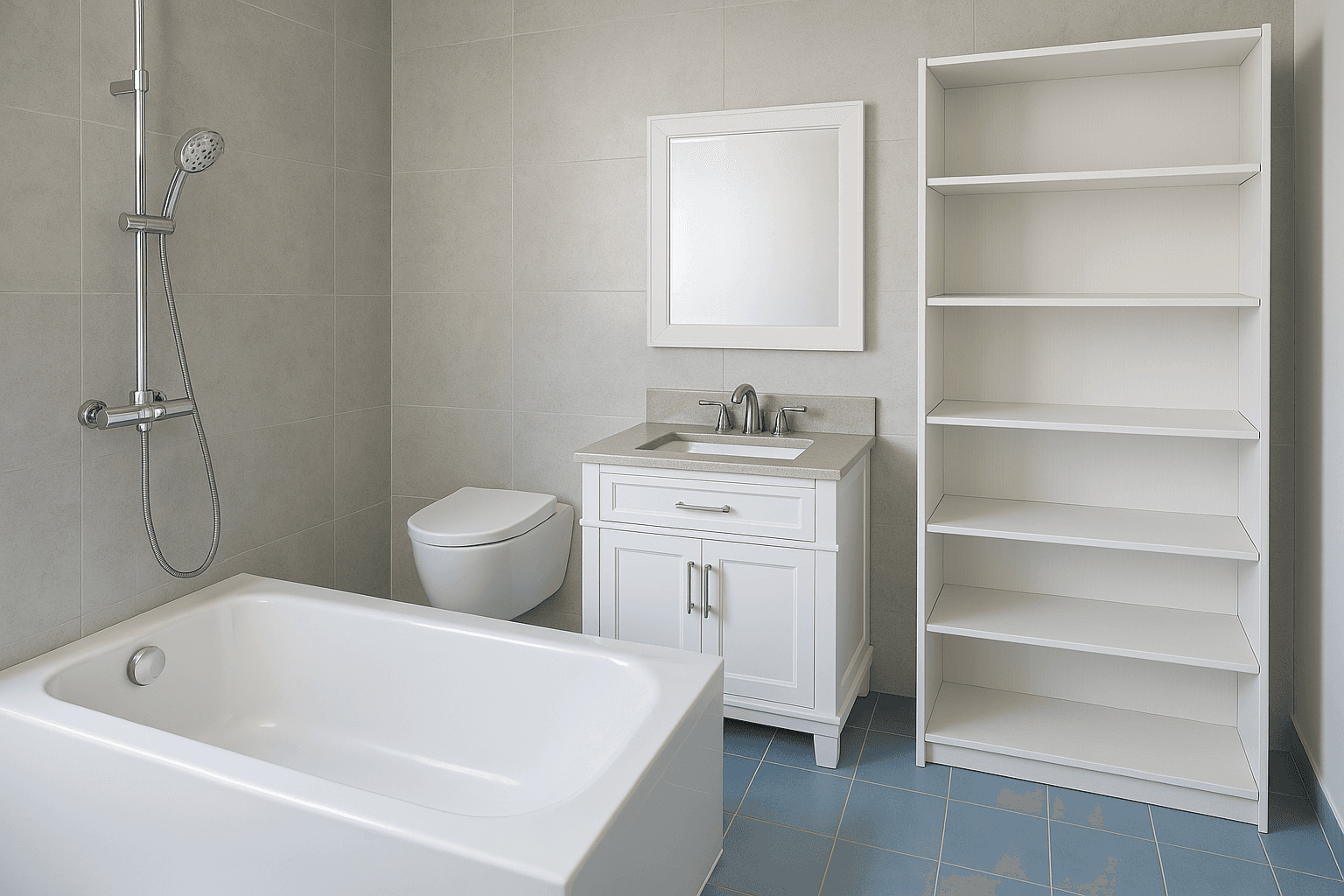

Bathtub: A rectangular built-in tub with overhead shower occupies the back wall, offering both bathing comfort and space efficiency. The placement enhances privacy, hidden from the entry view.
Toilet: Positioned beside the tub and slightly tucked away, the wall-mounted toilet benefits from discreet positioning without disrupting flow.
Vanity: The sink cabinet sits on the opposite wall, directly across from the bath, combining practicality with visual symmetry. The vanity features a large mirror to visually enlarge the space and reflect natural or artificial light.
Storage: The entrance area accommodates a full-height shelving unit, perfect for organizing towels, toiletries, and bathroom essentials without cluttering the main zone.
Minimum Dimensions & Practical Guidelines
The split entry facing 2-wall full bathroom requires a minimum width of 2.57–3 m (8′5″–9′11″) and a depth of 2.29–2.44 m (7′6″–8′). With a total floor area ranging from 5.8 to 7.3 m² (63–79 sq ft), this layout offers a generous and efficient configuration for organizing the main fixtures along facing walls, while maintaining a separate entry zone dedicated to storage and circulation.
For those planning a renovation of a bathroom or a remodeling of bathroom space in a family home, shared apartment, or modern suite, this layout ensures clear spatial definition between the wet zone and utility zone. Always plan for 61 cm (24″) of clearance around each fixture, 76 cm (30″) for comfortable circulation, and 1.52 m (60″) turning radius for accessibility compliance.
This layout is especially helpful in enhancing organization and flow in transitional or multi-use bathroom areas, supporting both aesthetic clarity and functional use.
Architectural Planning Tips
This layout’s strength lies in functional zoning: by splitting wet and dry areas with a transitional space, it prevents splash overlap and enhances comfort. Consider adding a sliding or pocket door to the entry area to optimize circulation and accessibility. Using light-colored tiles, wall-mounted fixtures, and reflective finishes will amplify the sense of space.
For families or shared households, this configuration also supports semi-private usage, where one person can enter to retrieve an item or wash up without fully entering the bathing area.
