Alerts
Some catalogue entries carry a note: keep a metre clear in front of this door, leave eighty centimetres of passage behind this workstation. On sites that turn the alerts on, when you place one of those objects, the note appears at the bottom of the plan and stays there until you dismiss it, so it can be read again once the furnishing is done.

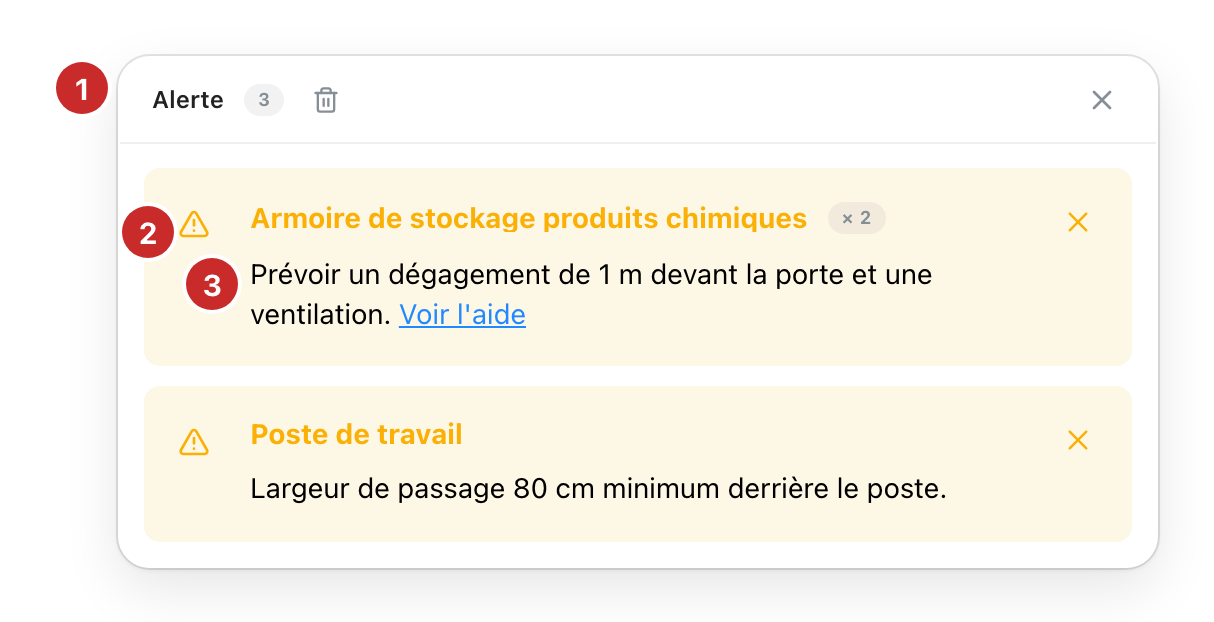

The first note opens the panel.
The latest note appears first. Each arrival brings the panel back to the top of the list and opens it if folded. Consecutive repetitions of the same note share a row with a counter.
- The header. How many notes there are, and a bin that clears them all. The cross folds the panel and preserves its notes.
- What it is about. The object's name, and
× 2when the same note arrived twice in a row: two of that object, one note. - What the plan has to say. The note the back office attached to that catalogue entry. A link inside it opens the help on the right page without leaving the editor.
Each note has its own cross, on the right, which dismisses that one.
When a note came from an object, a target appears beside its name. While that object is still in the project, clicking the target selects it, goes to its level if needed and brings the camera to it in the views that frame objects: that is how you find the one the note is about in a room full of them.
Folded

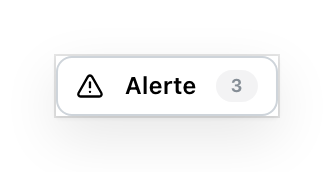

The cross in the header folds the island down to a pill. It keeps counting, and clicking it opens the panel again.
A new note automatically opens a folded panel.
Moving it
The island sits at the bottom centre of the plan, and it drags by its header if it is in the way of what you are working on. It comes back where you left it with the next note, until the project is opened again, when it is back at the bottom centre.
Which notes exist
The back office writes the notes attached to catalogue entries. Objects with an attached note display it when placed.
See also
- Catalog is where the objects that carry these notes come from.
- Safety Volumes shows the clearance a note often asks for, drawn on the plan as a volume.
