The window that opens when a background plan is imported. It does two things, one after the other: it gives the plan its real scale, then it offers to read the walls, doors and windows off it. Either can be skipped.

It opens again from the Background Plans tab. The pencil beside Scale starts on the calibration; Auto detect goes to detection, after the calibration if the plan has none yet.

Setting the scale

An image has no size of its own. The calibration gives it one: two points on the plan, and the real distance between them.

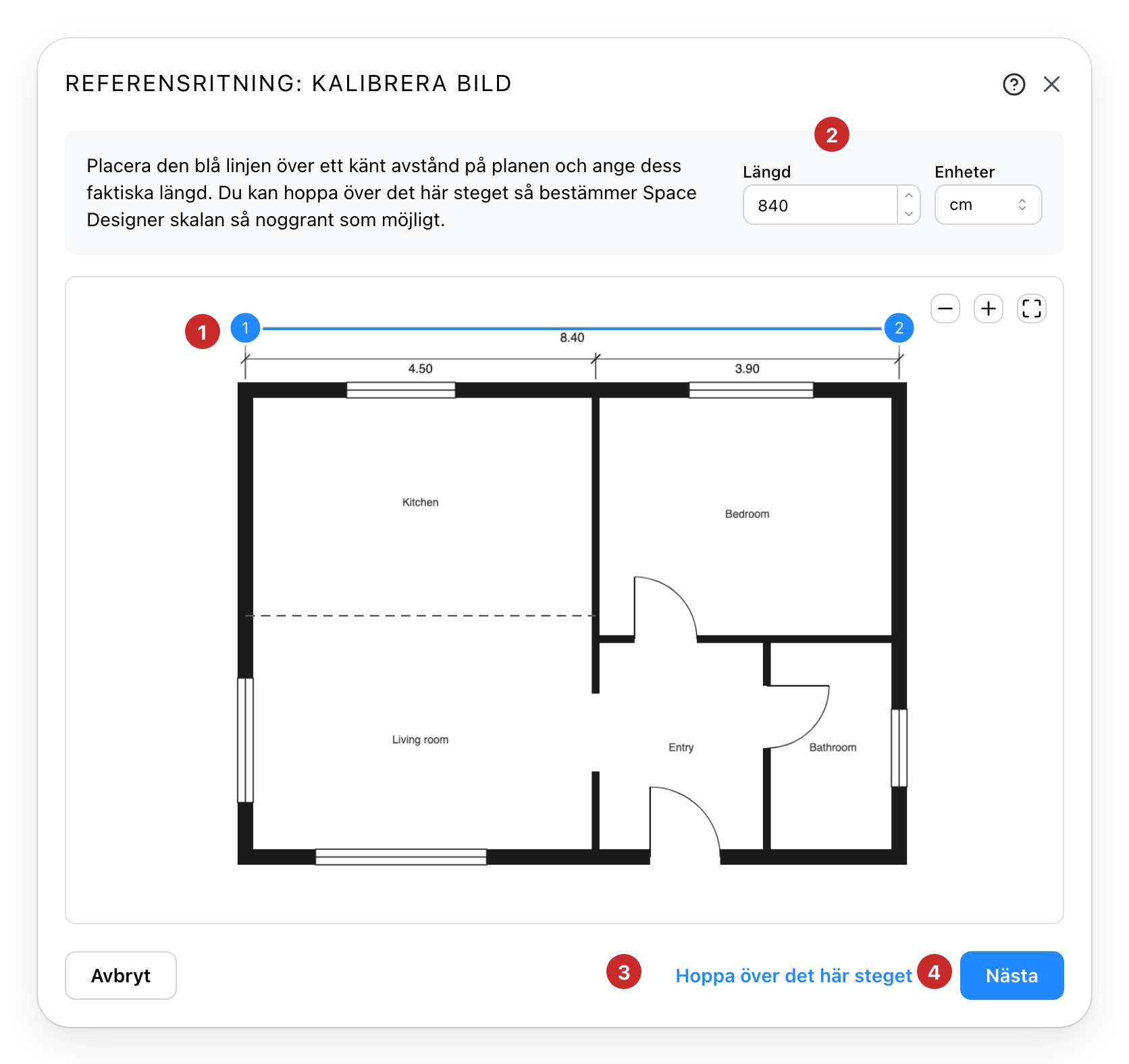

The calibration window

  1. The two points. Drag them onto the two ends of a length you know: a dimension written on the plan, or a wall you have measured. Zoom in with the buttons above the plan, and drag the image to move around it. While you hold a point, a loupe shows the pixels under it. Hold Shift to keep the line horizontal or vertical; the arrow keys move a point by one pixel.
  2. Length and Units. The real length between the two points. The unit you choose becomes the project's unit.
  3. Skip this step. Leaves the scale to the detection, which reads it from the dimensions written on the plan. See below. Offered only on a subscription with credits.
  4. Next. Applies the scale, then offers to detect the walls. On a subscription without credits, it applies the scale and closes the window.

Reopened from the tab, the calibration shows the two points where you left them. Press Next without moving anything and the scale does not change.

Detecting walls, doors and windows

An analysis is paid in credits, and detection is not included in every subscription.

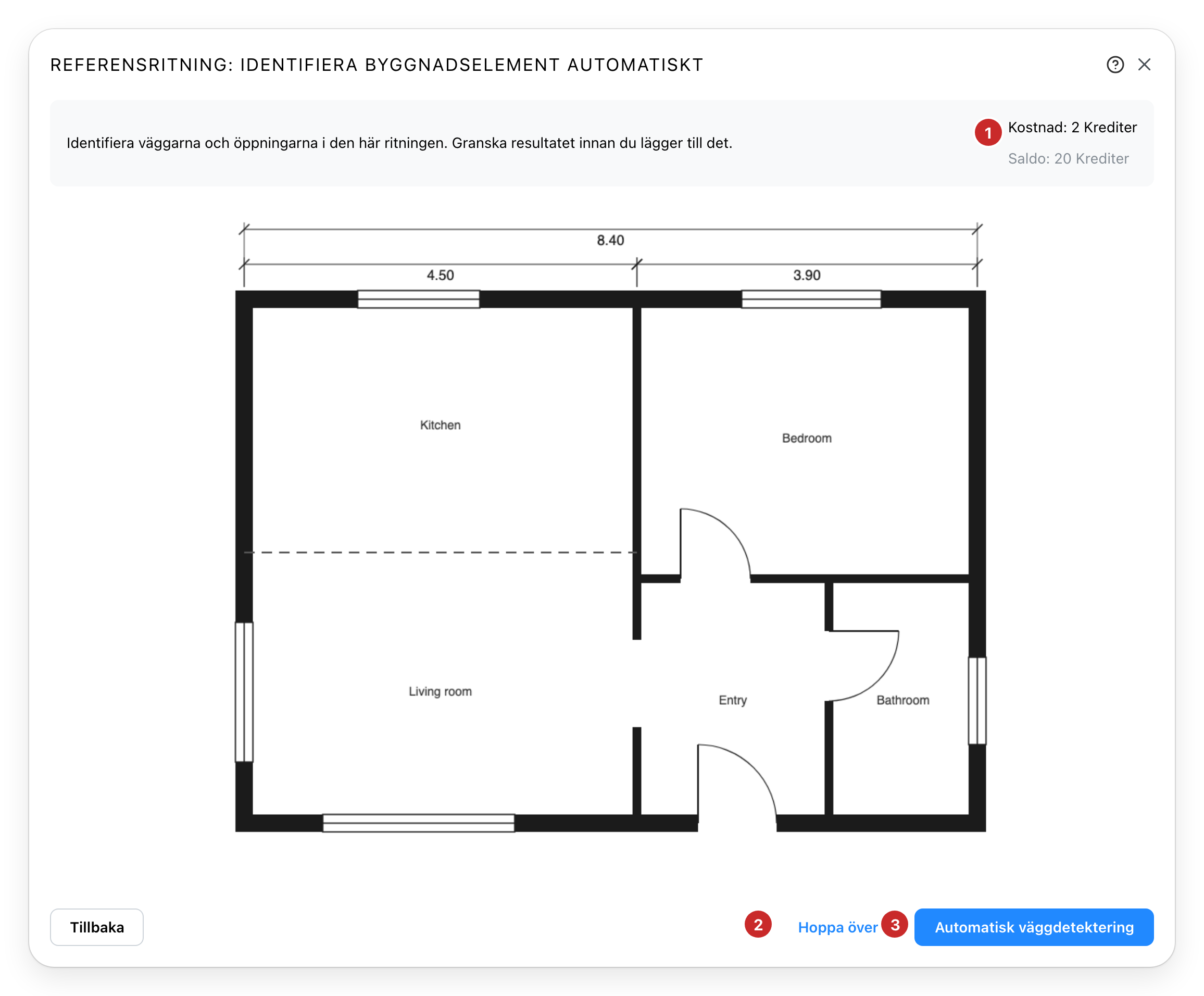

The detection step, before it starts

  1. Cost and Balance. What one analysis costs, and the credits you have. Nothing is charged before you start.
  2. Skip. Closes the window. The plan keeps its scale and nothing is added.
  3. Auto Detect Walls. Starts the analysis. Unavailable while the balance is below the cost.

An analysis takes a while. The window shows how long it has been running and what is being looked at. You can close it: the analysis carries on, and opening the window again on the same plan picks it up without charging a second time.

The live progress text is in English during the analysis. The final remarks, for the whole plan and for each floor, use the interface language. Room names stay as written on the plan.

Checking what was found

Nothing is added to the project until you say so.

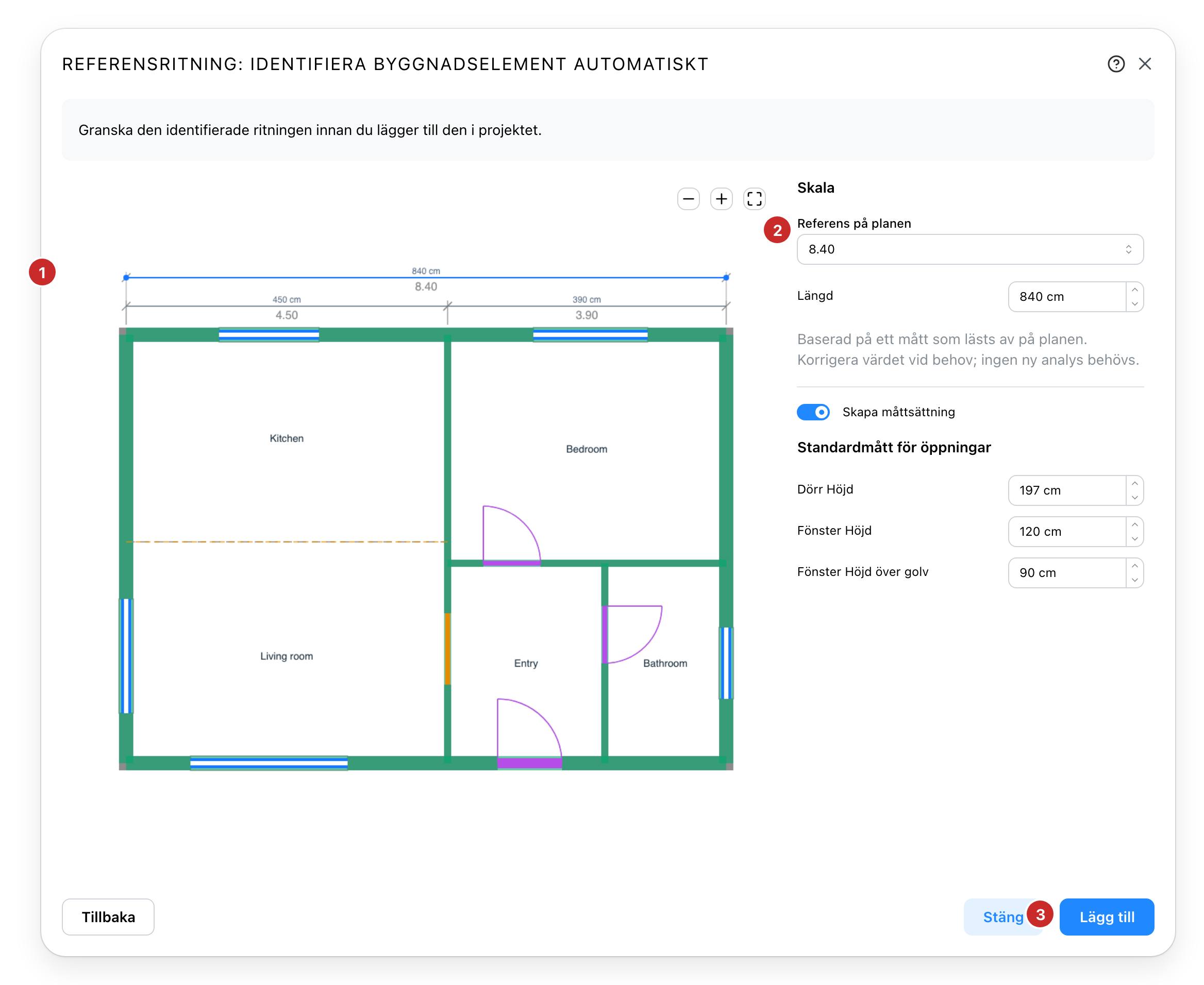

The detected plan, ready to be added

  1. The detected plan. Drawn over your plan: walls in green, open separations dashed in orange, windows in blue, doors in purple with their swing, and the name of each room. Drag and zoom to look at a corner closely.
  2. Reference on the plan. Only when you skipped the calibration: the dimension that sets the scale, the longest one found by default. Pick another, or correct its length if it was misread; no new analysis is needed.
  3. Add. Creates the walls, doors, windows and rooms on the plan's level.

In the column beside the plan, Create dimensions adds the dimensions read on the plan to the project as dimension lines, and Default opening dimensions holds the heights a plan does not give, for the doors and windows found on it.

2 When the plan has no usable dimension

The width of a door leaf is used instead, 83 cm or 32 in, and the window says it is an estimate. Check the width of the leaf itself, without its frame, and correct it. If there is no door either, Add stays unavailable and Back returns to the calibration. The analysis is kept, so measuring by hand costs nothing more.

3 Adding the result

A default opening that would rise above the height of the level stops Add until it is lowered.

If something already stands where the plan lies, the plan and everything detected on it move beside it together, so nothing lands on top of your work. A single Undo takes the whole addition back, the plan's position included.

A drawing that shows several floors side by side gets a selector above the preview, to add them one at a time.

After you add the result, the Alerts panel points out a door whose opening direction needs checking, an opening imported with an unrecognised type, or a room whose boundaries need checking. Check the door, opening, walls or dividers concerned on the plan.
