A Smart Layout for a 4 m² (43 sq ft) Bathroom

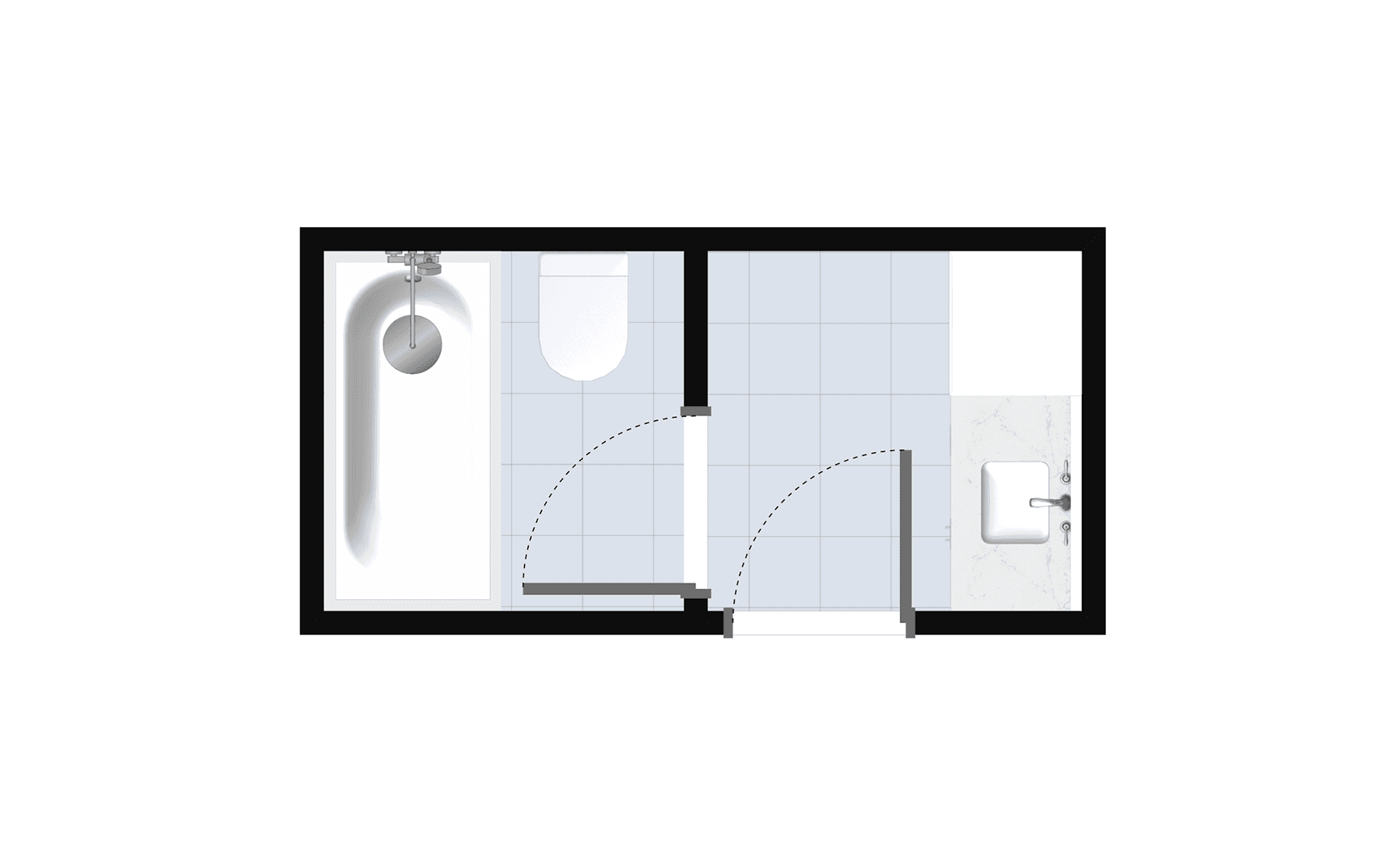

This 4 m² (43 sq ft) split bathroom features a well-balanced design where the entry door opens into a central corridor separating the wet and dry zones. This configuration ensures privacy and improves functional circulation, especially in shared or guest bathrooms.
Room-by-Room Breakdown
Visualize your bathroom project clearly with this room-by-room breakdown of layout choices.

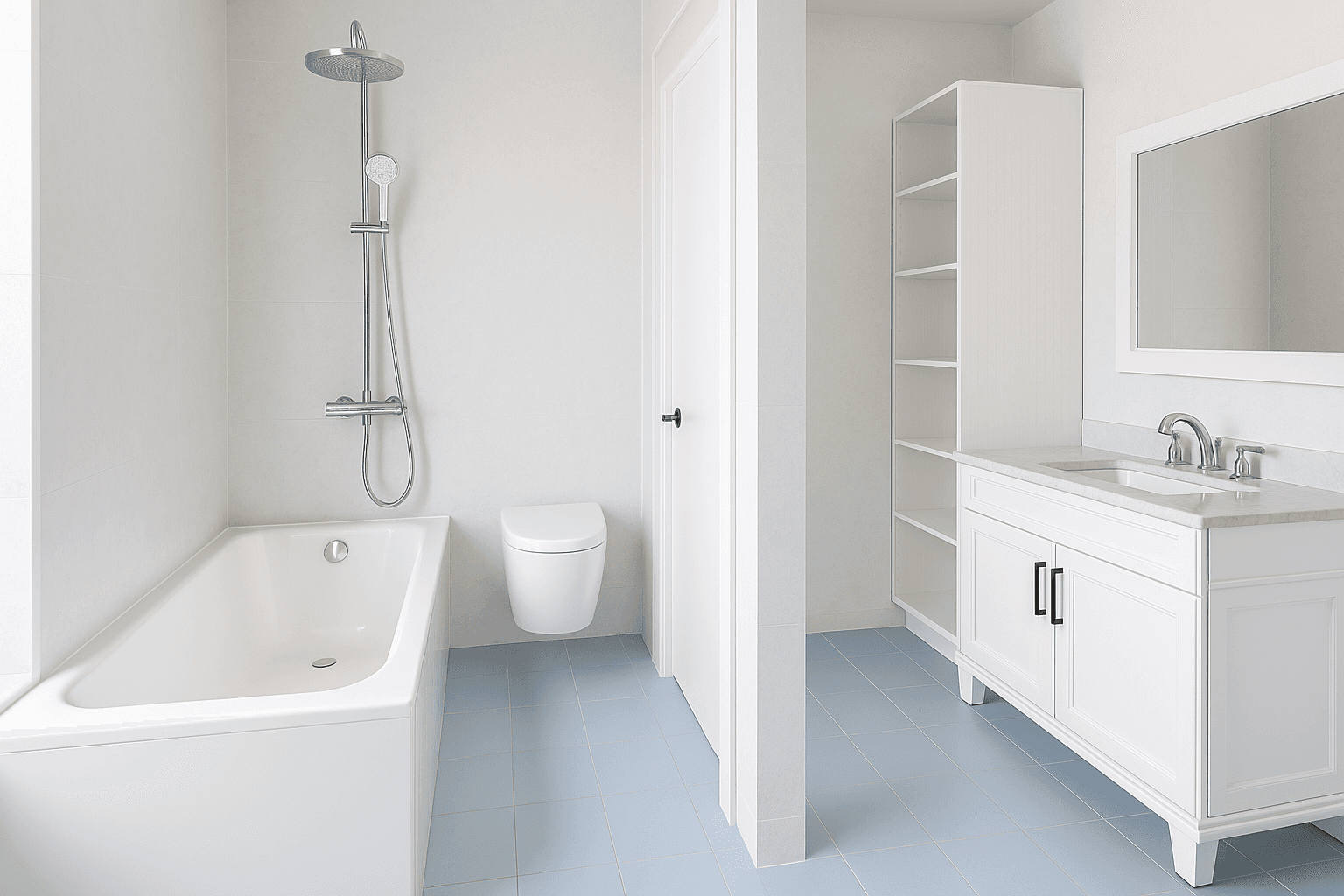

Toilet and Bathtub Area (2.5 m² / 26.9 sq ft): On one side, a wall-mounted toilet and a full-size bathtub share the same plumbing wall, reducing installation costs. The placement leaves enough room for movement, even in this narrow footprint.
Vanity Area (1.5 m² / 16.1 sq ft): Opposite, a spacious marble-topped vanity with integrated sink and storage drawers is lit by natural light. The mirror adds visual depth, making this small space feel larger and more welcoming.
Minimum Dimensions & Practical Guidelines

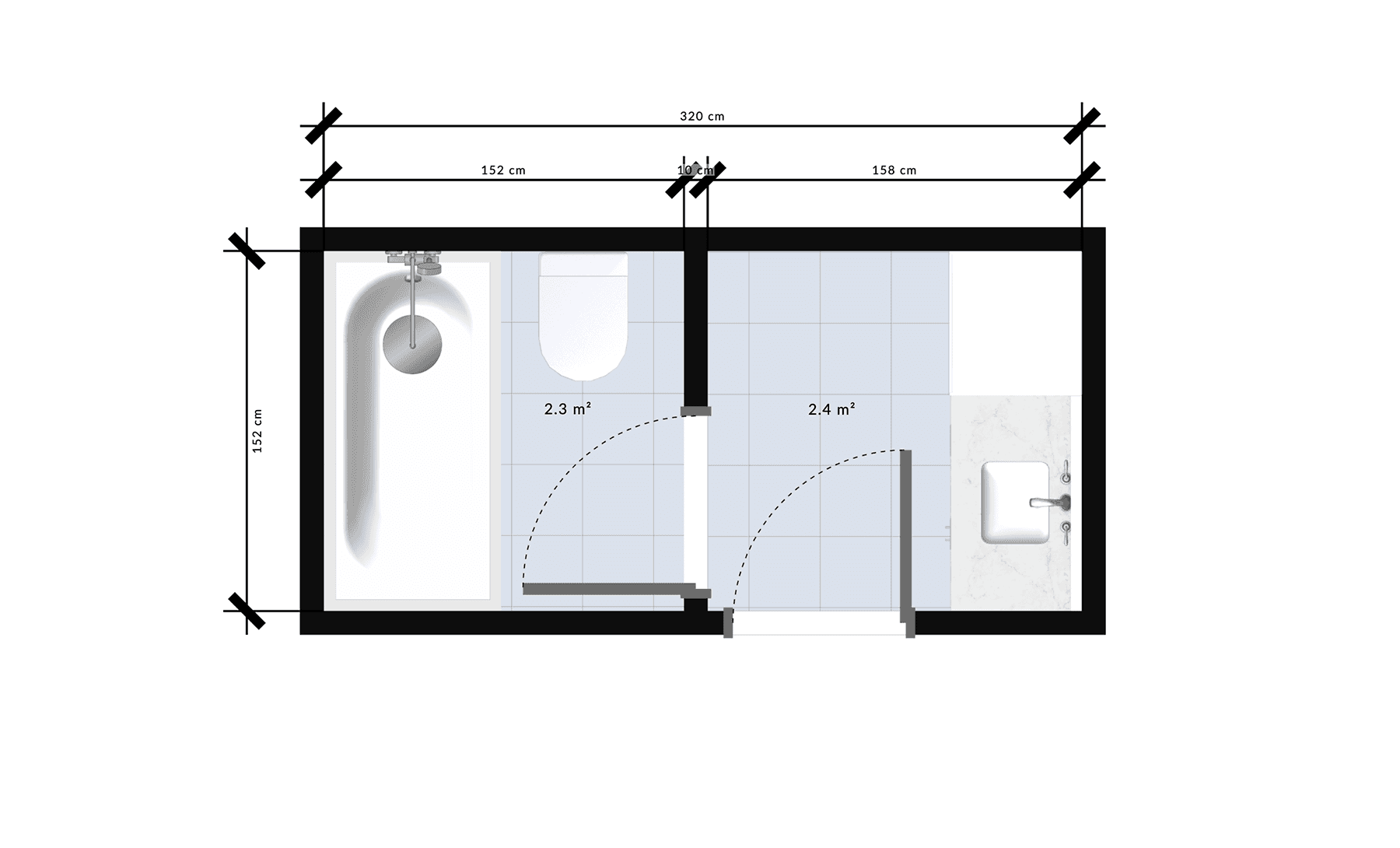

The split center 2-wall full bathroom layout requires a minimum width of 3.24–3.54 m (10′8″–11′8″) and a depth of 1.68–1.83 m (5′6″–6′). With a total floor area ranging from 4.3 to 6.5 m² (47–70 sq ft), this design allows a thoughtful separation between the wet zone (bathtub and toilet) and the dry zone (sink and storage) by organizing them in perpendicular rooms. It’s particularly effective in optimizing shared spaces while preserving privacy and usability.
If you're planning a renovation of a bathroom or a remodeling of bathroom with the goal of enhancing comfort without increasing square footage, this layout ensures excellent performance. Maintain an activity clearance of 61 cm (24″) around each fixture, with 76 cm (30″) for movement between zones. A 1.52 m (60″) turning diameter guarantees accessibility for wheelchair users and improves overall circulation.
The layout’s functional segmentation makes it especially attractive for modern families or guest suites where style, privacy, and practicality must coexist harmoniously.
Architectural Tips
These architectural tips are tailored for those planning a remodeling of bathroom with modern needs.
Opt for suspended fixtures to free up floor space and simplify cleaning.
Use a central door to minimize traffic conflict between morning users.
Add slim LED sconces or mirrors with built-in lighting in the vanity zone for a brighter and more functional prep space.
Choose neutral tiles across both zones for visual continuity and a cohesive look.
